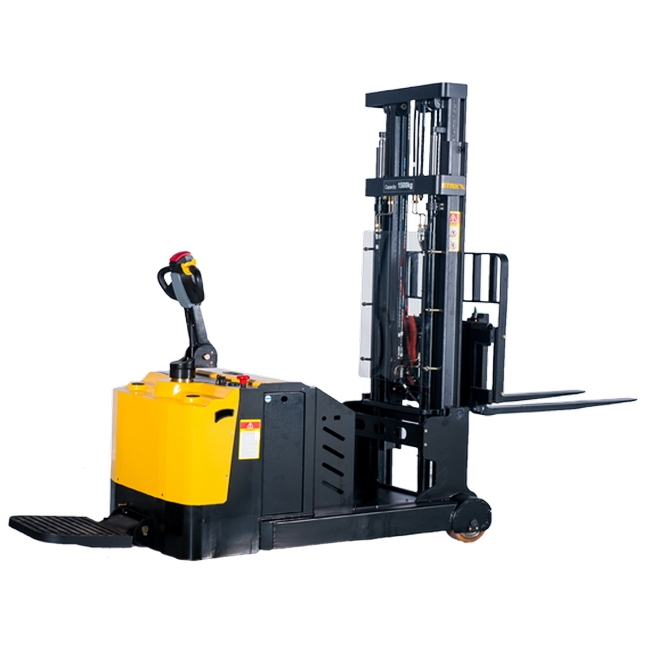

Can be widely used at ports, railways, freight yards, warehouses, also it can enter the cabin, carriages and containers for pallet goods handling and stacking operations.
- Type of drive: full electric.
- Wheel base: 1654mm.
- Overall length: 3540mm.
- Fork length: 1070mm.
- Fork width: 240mm – 680mm.
- Aisle width (800 x 1200mm pallet): horizontal/vertical: 3410mm.
- Aisle width (1000 x 1200mm pallet): horizontal/vertical: 3440mm.
- Travel speed: 5km/h.
- Robust steel construction with a yellow and black powder coated finish.
Products specifications
| Colour | Yellow |
| Material | Steel |
| Product Weight | 2030kg |
| External Dimensions | 3540 (L) x 1035 (W) x 2055 (H) mm |
| Maximum Carrying Load | 3000kg |
| Maximum Lift Height | 3000mm |
| Maximum Lifting Load | 2000kg |
| Material Details | Steel |
| Wheels | 75mm (W) x 160 (?)mm Single Nylon Wheels |
| Lowered Height | 70mm |
| Drive Motor | DC 2.5kW |
| Load Centre | 600mm |
| Minimum Turning Radius | 1840mm |
| Mechanism | Full Electric |
| Product Source | China |
| Whats in the box | 1 x Pallet Stacker Electric |
| Warranty | One-year limited product warranty |
